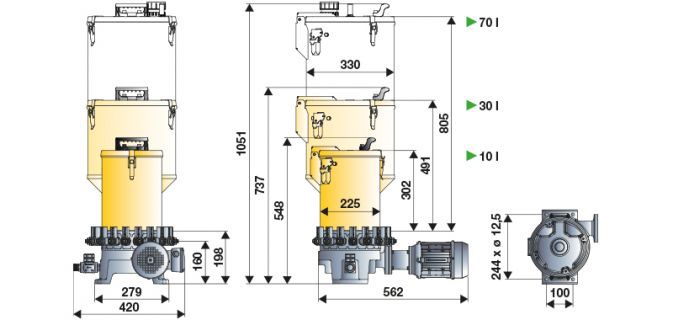

Motor operated pump s. C25S for oil 230-400 V AC - 50 Hz - 275-480 V AC - 60 Hz 6 poles and 4 pumping elements, R 35:1, 10 litres reservoir and min level indicator
Flow rate | 35 cm3/min |
Tank capacity | 10 l |
Reducer ratio | 35:1 |
Lubricant inlet connection | G 1/2" (f) |
Lubricant outlet connection | G 1/4" (f) |
N° of pistons | 4 |
Working temperature | -25 ÷ +60 °C |
Compatible fluids | oils > 40 cSt |
Supply | 230/400 V AC - 50 Hz - 275/480 V AC - 60 Hz |
Protection degree | - |
Velocity | 6 poles: 870 ÷ 1100 rpm |
Packing | No. 1 - 0,141 m3 |
Net weight | 31,1 kg |
Gross weight | 42,9 kg |
