8422.301

P/N 8422.301

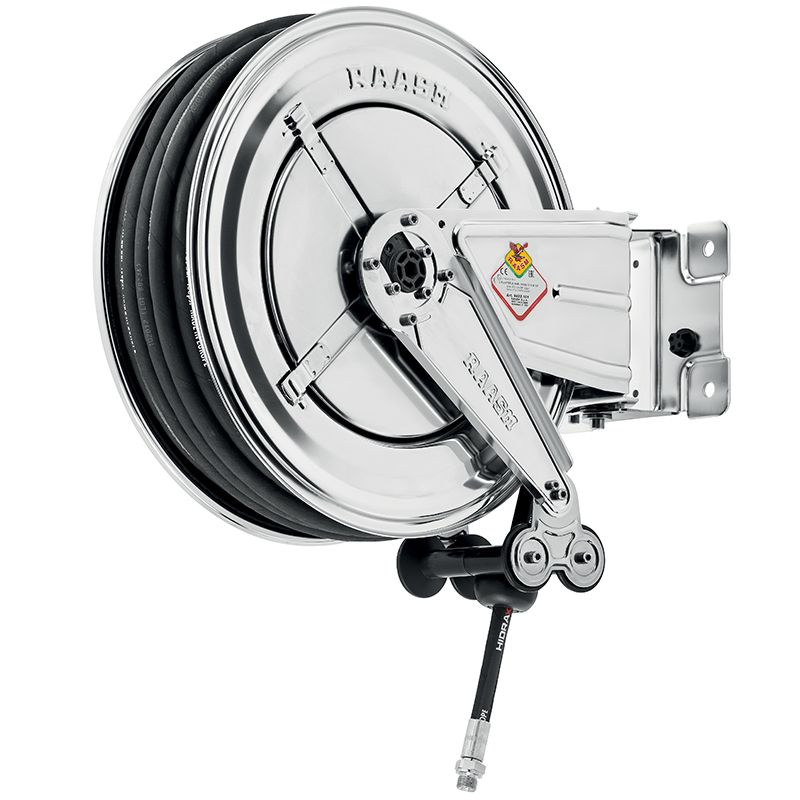

Swivelling hose reel in AISI 304 stainless steel s. 430, for hot water, 200 bar, with black rubber hose 12 m, ø 3/8"

Features

Pressure 200 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic swivelling
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 995.512
ø and hose length ø 3/8" - 12 m
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel

Certifications

8422.301

Overall dimensions (mm)

8422.301

This product is also available without hose
